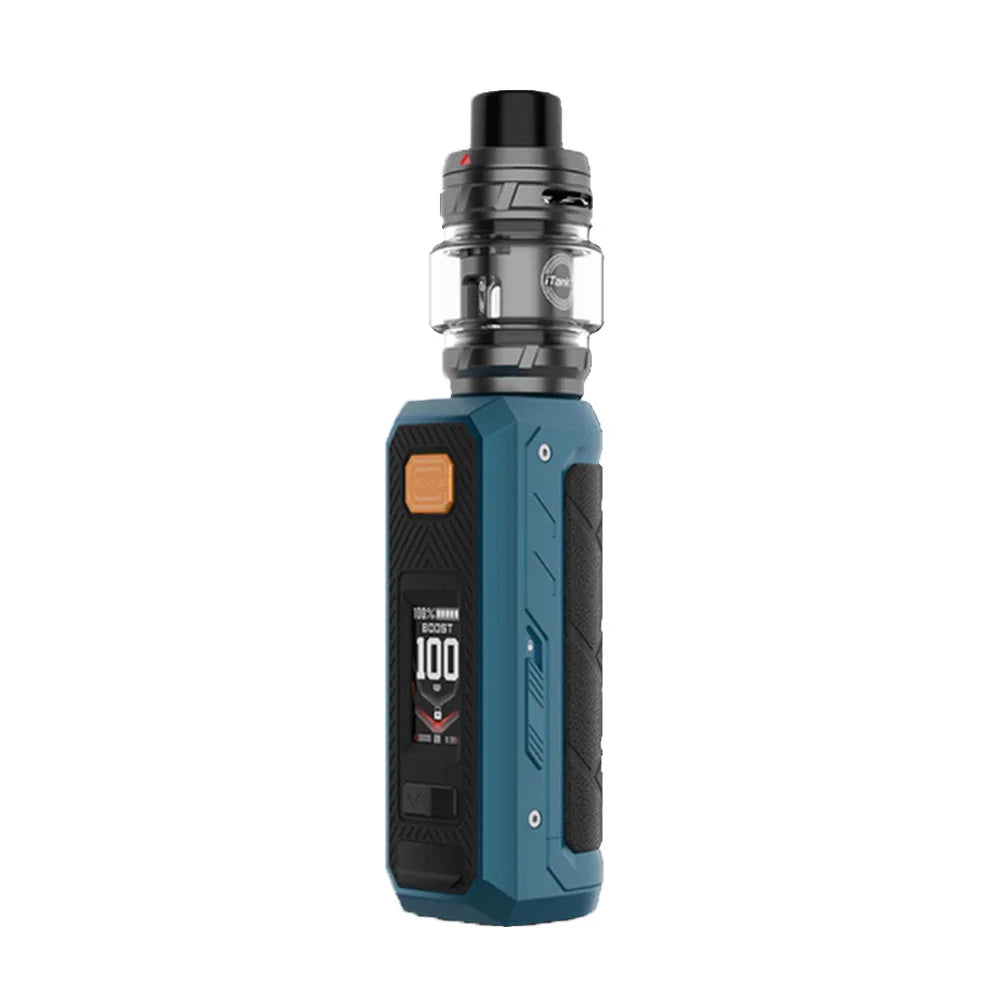

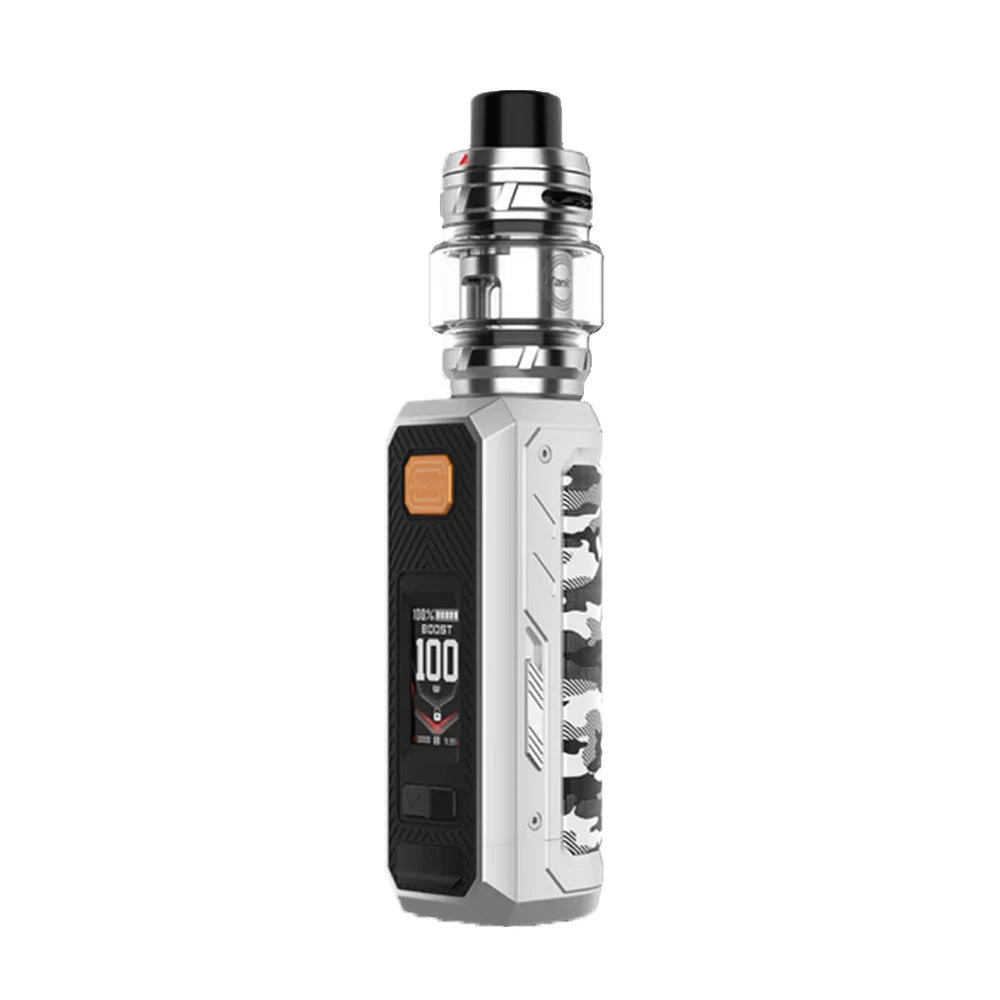

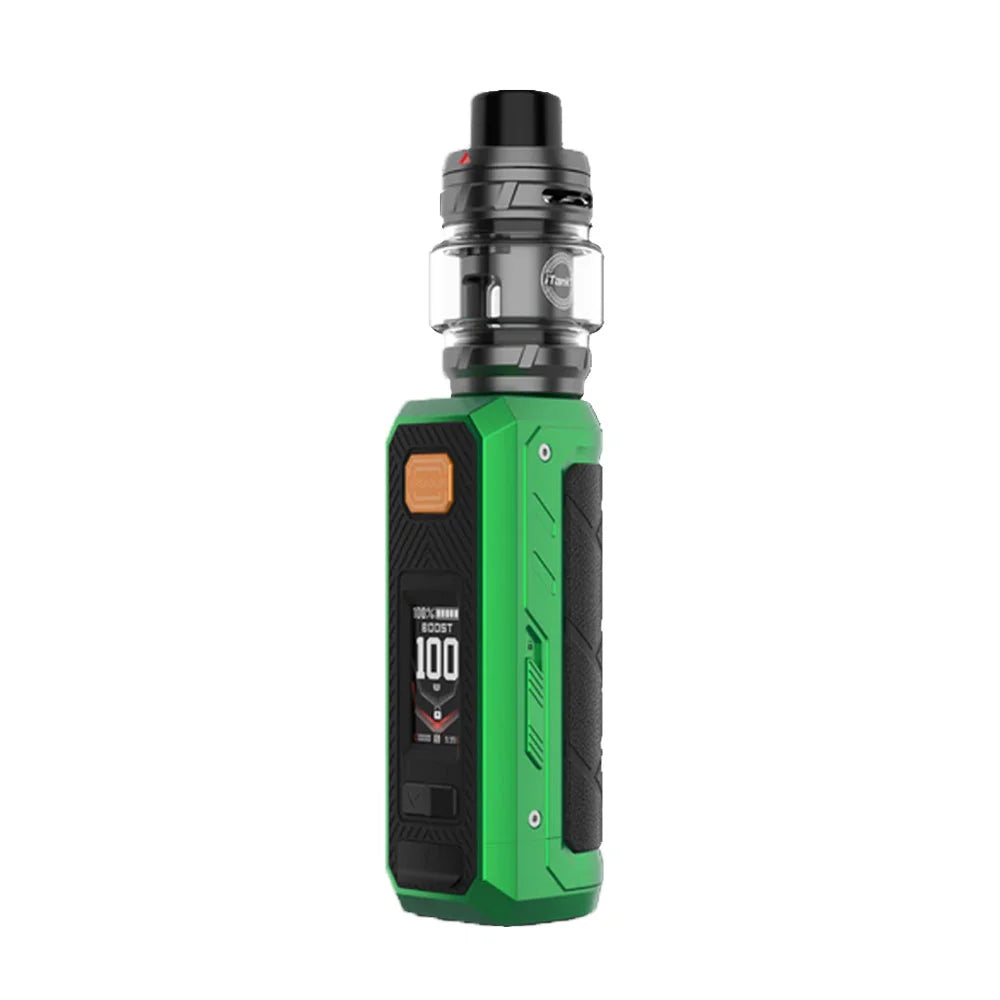

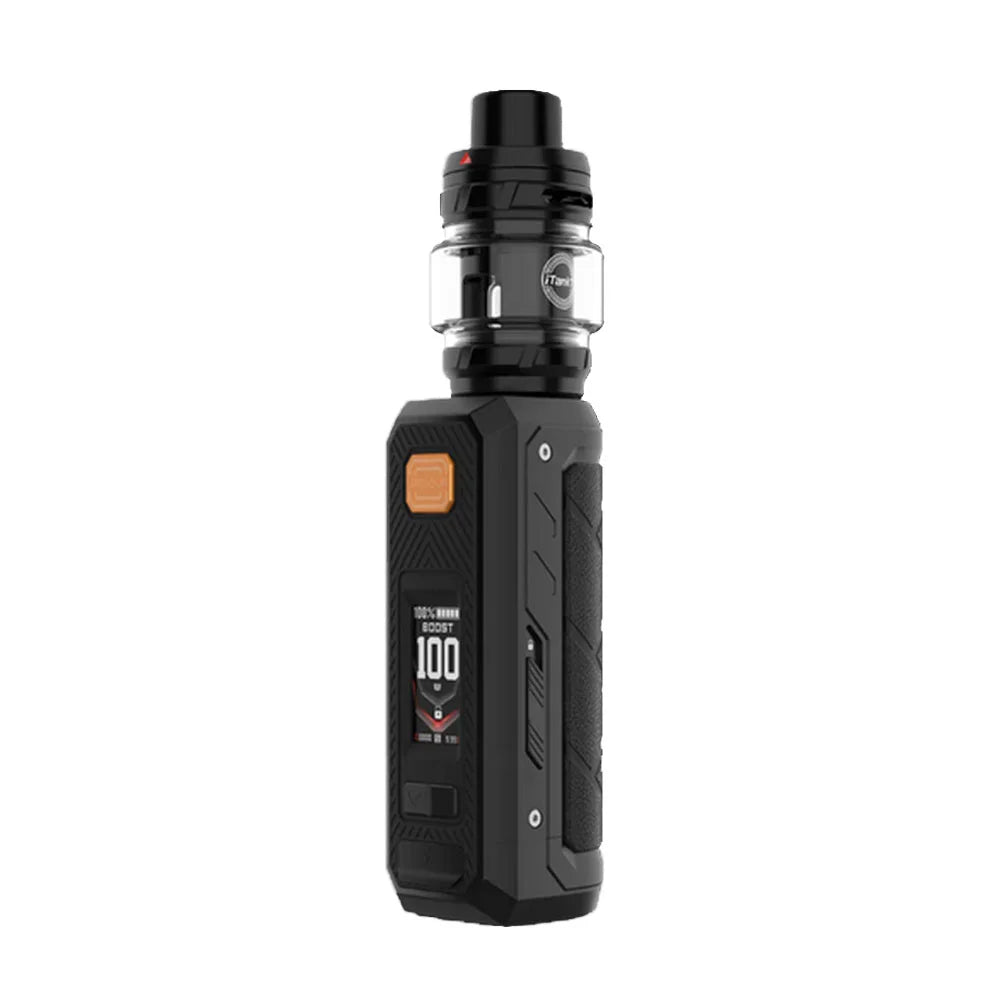

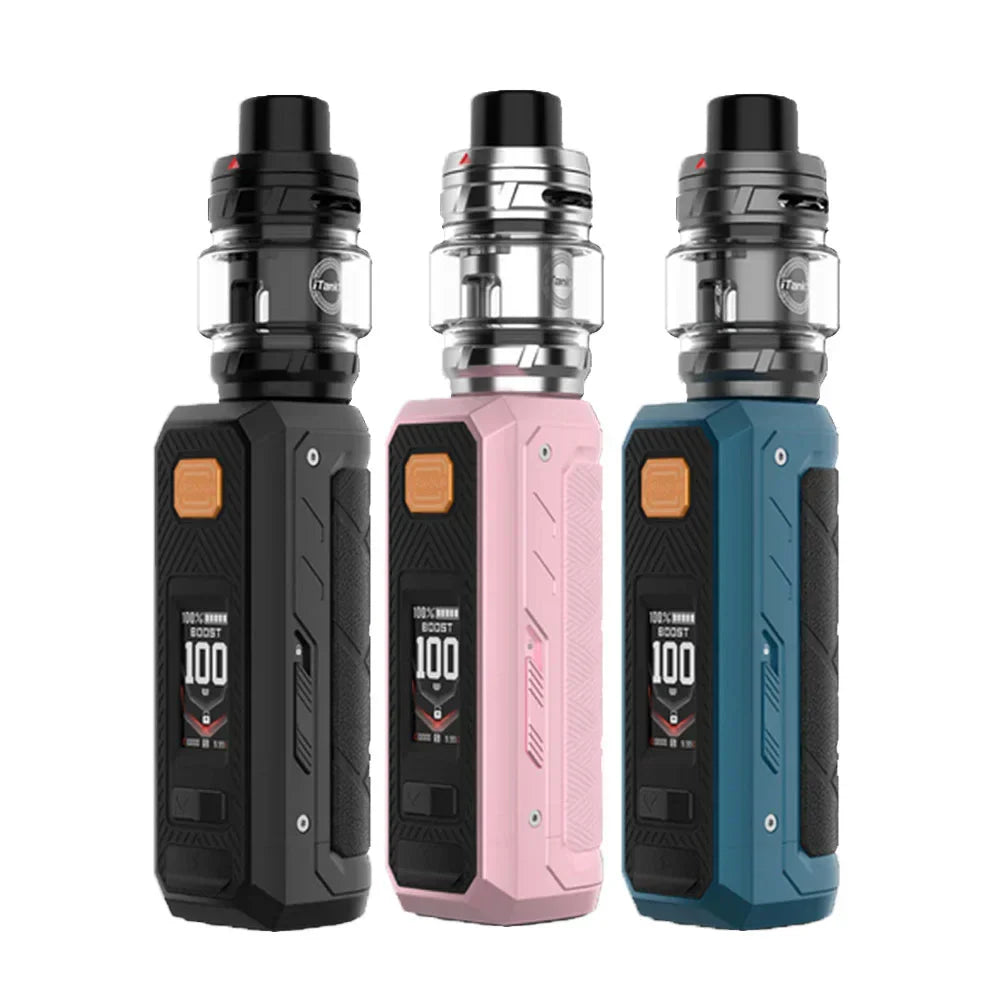

Vaporesso Armour Ultra 100W Vape Kit

Brand: Vaporesso

1 Free 100ml Shortfill
Regular price £53.99 GBP
Regular price Sale price £53.99 GBP
Note Click Here to Add 1 Free E-Liquid to Cart!

Free Shipping

Order Above £30

Price Match Guarantee

Best value every time

Satisfied Customers

Over 500+ happy clients

View full details

Battery life can make a big difference when choosing a vape kit, especially if you prefer higher power settings. The Vaporesso Armour Ultra 100W addresses this with a built-in 5500mAh battery and adjustable output up to 100W. Unlike the Armour Max, which uses two external batteries, the Armour Ultra keeps its power source built into the mod, giving you a self-contained setup.

There's more to this kit than its battery capacity. It features a 0.96-inch TFT screen, several operating modes and the iTank T with GTi Dual Mesh coils. Its protective construction also carries IP68, IP69K and MIL-STD-810H ratings, making it an interesting option for adult vapers who want a durable sub-ohm kit for DTL (direct-to-lung) vaping.

Shipping & Delivery:

We deliver across the UK. All orders placed before 4:00 PM (Monday–Saturday) are shipped the same day through Royal Mail First Class, with an estimated delivery time of 1–3 working days. Orders placed after 4:00 PM, on Sundays, or during bank holidays are dispatched the next working day.

Delivery Costs:

  • Standard Delivery: £2.99
  • 1st class 1-3 Days: £3.49
  • Free delivery on all orders over £30 (after discounts).

Tracking details are emailed once your parcel has been dispatched.

If no one is available at delivery, Royal Mail may leave the parcel at your local office. For any delayed or missing deliveries, please contact us and we’ll assist right away.

Returns & Refunds:

We offer a 30-day return policy for unused and unopened items in their original packaging. Before sending anything back, please contact us at info@mavapour.co.uk or 01492 330670 with your order number and reason for return.

Send returns via tracked post to: Ma Vapour, 11 Cefn Rd, Old Colwyn, Colwyn Bay, LL29 9PN, United Kingdom.

For further help, contact us during our business hours:

Mon–Fri: 9–6 | Sat: 9–5 | Sun: 10–4

Explore our range of vape kits and vape tanks to compare different setups. You can also browse our shortfill e-liquids and replacement vape coils for compatible accessories.

Key Features Of The Vaporesso Armour Ultra 100W Vape Kit

Adjustable Power Output From 5W To 100W

The Vaporesso Armour Ultra offers variable wattage from 5W to 100W, allowing you to adjust the power according to your preferred settings. Its maximum 100W output supports compatible sub-ohm coils, while the lower settings give you more flexibility when choosing how much power to use. You can also follow the recommended wattage range printed for your installed GTi coil.

Built-In 5500mAh Rechargeable Battery

A large battery capacity is one of the main highlights of the Armour Ultra. It houses a built-in 5500mAh battery, so there's no need to purchase or install separate 18650 or 21700 batteries. Vaporesso states that its capacity offers endurance comparable to two 18650 batteries. The kit also supports USB Type-C charging with 9V/2A or 5V/3A input options.

Multiple Vaping Modes With AXON Chipset

The Vaporesso Armour Ultra uses the AXON chipset to provide different operating modes, including Boost, Pulse, Eco and Temperature Control (TC). Boost Mode focuses on stronger power delivery, while Pulse Mode provides a different style of power output. Eco Mode helps manage battery consumption, and TC Mode offers temperature-based control with compatible coils. These settings give you more ways to customise your vaping experience.

iTank T With 2ml TPD Capacity

The kit includes the Vaporesso iTank T, a refillable sub-ohm tank featuring a convenient sliding top-fill design. The standard version has a 6ml capacity, while the UK TPD version supplied with this kit holds 2ml of e-liquid. Its adjustable top airflow allows you to change the amount of air entering the tank, helping you find a draw that suits your preferences.

GTi Dual Mesh Coils For DTL Vaping

The Armour Ultra comes with two GTi Dual Mesh coils: a 0.2Ω coil pre-installed in the tank and an additional 0.4Ω coil in the box. The 0.2Ω option has a recommended power range of 60W–75W, while the 0.4Ω coil operates between 50W and 60W. Their dual mesh heating structure helps distribute heat across the coil surface, supporting consistent flavour and vapour production.

IP68, IP69K And Military-Grade Protection

The Vaporesso Armour Ultra is built with a reinforced exterior designed to handle demanding everyday conditions. Its mod carries IP68 and IP69K ratings for protection against dust and water, along with MIL-STD-810H certification and a 1.2m drop-test rating. The protective construction adds durability to the kit, while its reinforced 510 connection provides a secure connection between the mod and tank.

How To Use The Vaporesso Armour Ultra 100W Vape Kit?

  1. 1

    Charge The Battery: Before using the Vaporesso Armour Ultra for the first time, charge its built-in 5500mAh battery using the supplied USB Type-C cable.

  2. 2

    Check the GTi Coil: Make sure the appropriate GTi Dual Mesh coil is securely fitted into the iTank T.

  3. 3

    Fill the iTank T: Slide open the tank's top-fill cap and add your chosen e-liquid through the filling port without exceeding its 2ml capacity.

  4. 4

    Prime the Coil: Allow the filled tank to sit for approximately 5 minutes so the coil cotton can absorb the e-liquid.

  5. 5

    Attach the Tank: Secure the Vaporesso iTank T onto the Armour Ultra using its 510 connection.

  6. 6

    Adjust Your Settings: Switch on the Vaporesso Armour Ultra, select your preferred operating mode and set the wattage within the recommended range of your installed GTi coil.

Vaporesso Armour Ultra 100W Vape Kit Specifications

SpecificationDetails
Maximum Output100W
Power Range5W–100W
Battery Capacity5500mAh
Battery TypeBuilt-In Rechargeable Battery
Display0.96-Inch TFT Screen
ChipsetAXON
Operating ModesBoost, Pulse, Eco and TC
TankVaporesso iTank T
Tank Capacity2ml (UK TPD Version)
Included CoilsGTi 0.2Ω Dual Mesh Coil (60W–75W), GTi 0.4Ω Dual Mesh Coil (50W–60W)
Charging PortUSB Type-C
Charging InputDC 9V/2A or 5V/3A
Dimensions144.5 x 37.6 x 31mm
Weight256g
Vaping StyleDTL (direct-to-lung)

What's In The Box?

1 x Vaporesso Armour Ultra Mod

1 x Vaporesso iTank T (2ml TPD Version)

1 x GTi 0.2Ω Dual Mesh Coil (Pre-Installed)

1 x GTi 0.4Ω Dual Mesh Coil

1 x USB Type-C Charging Cable

1 x Refilling Silicone Plug

2 x O-Rings

1 x Extra Glass Tube

1 x Extra Tank Protector

1 x User Manual and Warranty Card

Frequently Asked Questions

What Is The Maximum Wattage Of The Vaporesso Armour Ultra?

The Vaporesso Armour Ultra has an adjustable power range of 5W to 100W, allowing you to select a suitable output for your installed coil.

How Big Is The Battery In The Vaporesso Armour Ultra?

The Armour Ultra has a built-in 5500mAh rechargeable battery, providing a large battery capacity for extended use.

Does The Vaporesso Armour Ultra Have A Removable Battery?

No, the Armour Ultra uses a built-in 5500mAh battery that cannot be removed or replaced like an external 18650 battery.

What Is The Tank Capacity Of The Vaporesso Armour Ultra?

The UK TPD version of the Vaporesso iTank T supplied with this kit has a 2ml e-liquid capacity. The standard version has a 6ml capacity.

Which Coils Are Included With The Vaporesso Armour Ultra?

The kit includes a GTi 0.2Ω Dual Mesh coil, which comes pre-installed, and an additional GTi 0.4Ω Dual Mesh coil. Their recommended wattage ranges are 60W–75W and 50W–60W, respectively.

What Is The Difference Between GTi Mesh And GTi Dual Mesh Coils?

GTi Dual Mesh coils use a dual mesh heating structure, while standard GTi mesh coils use a conventional mesh structure. Both are designed to heat e-liquid, but their heating configurations differ.

What Vaping Modes Does The Vaporesso Armour Ultra Offer?

The Armour Ultra features Boost, Pulse, Eco and Temperature Control (TC) modes. Each mode offers a different way to manage power delivery and customise your settings.

Is The Vaporesso Armour Ultra Waterproof?

The Armour Ultra mod carries IP68 and IP69K ratings for water and dust protection. These ratings apply to the mod and should not be taken as a guarantee that the complete kit, including its tank, is waterproof.

How Do You Charge The Vaporesso Armour Ultra?

The Armour Ultra charges through its USB Type-C port and supports DC 9V/2A or 5V/3A charging input.

Which Replacement Coils Are Compatible With The Vaporesso Armour Ultra?

The Vaporesso Armour Ultra uses the GTi coil platform through its iTank T. Compatible options include GTi 0.15Ω Dual Mesh, 0.2Ω Mesh, 0.4Ω Mesh and 0.5Ω Mesh coils, subject to the tank's compatibility and recommended wattage.
